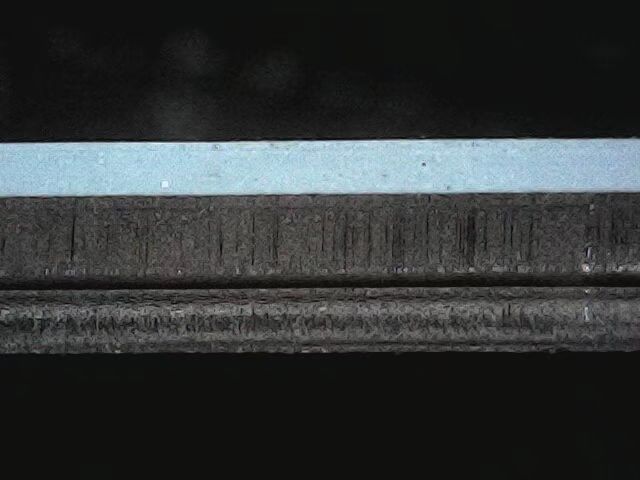

Cross-Sectional Micrograph
Part Number

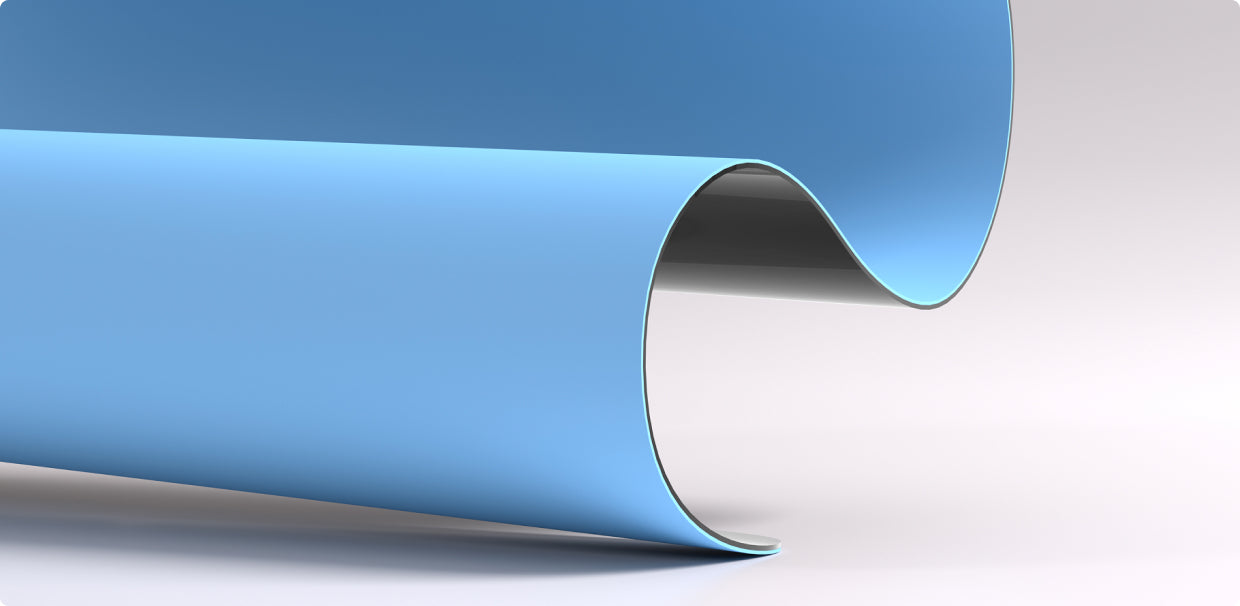

Kruse VBF
VBF is a stripping plate designed for in line coating with sheetfed offset presses.
The plate is reusable many times and is suitable for long run UV and water base coatings.
The combination of VBF plate with compressible underlayer Varnicomp SR enhances the coating quality results, ensuring a uniform and consistent coating transfer over a variety of substrates.
Using UV coatings, at the end of every print run, it is highly recommended to clean the plate surface with a wash in order to remove all residuals of coating, then rinse with water and dry.
Color
Blue
Thickness
1.15mm/1.35mm
Total Hardness
75° (ShoreA)
Polyester Base Thickness
0.35mm
Standard Roll Width
1450mm – 1700mm
Standard Roll Length
30m – 50m
Polyester Base Thickness
0.35mm
Factory
Kruse
Thickness of Stripping Layer
0.8mm per 1.15mm/ 1.0mm per 1.35mm
If you have any requirements, please feel free to contact us via email.
